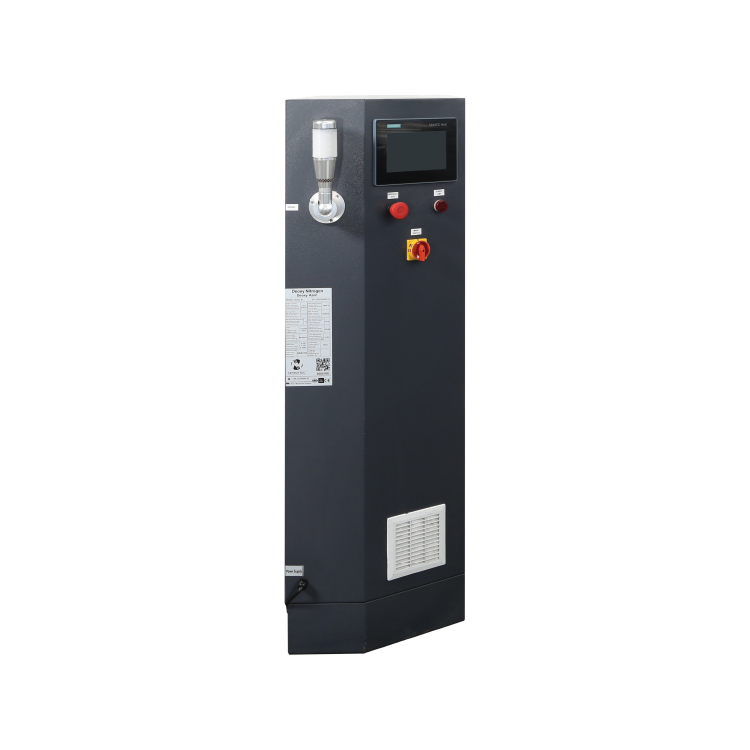

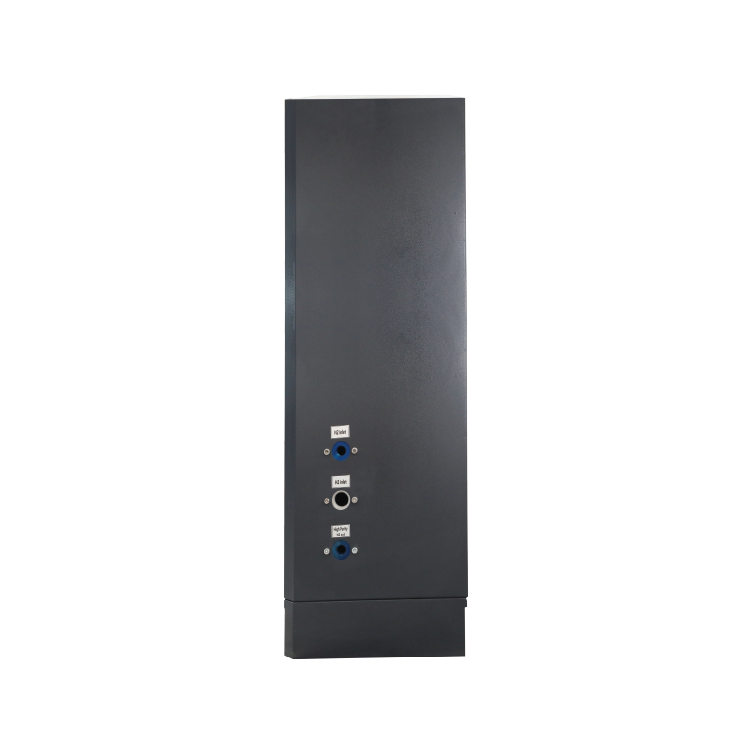

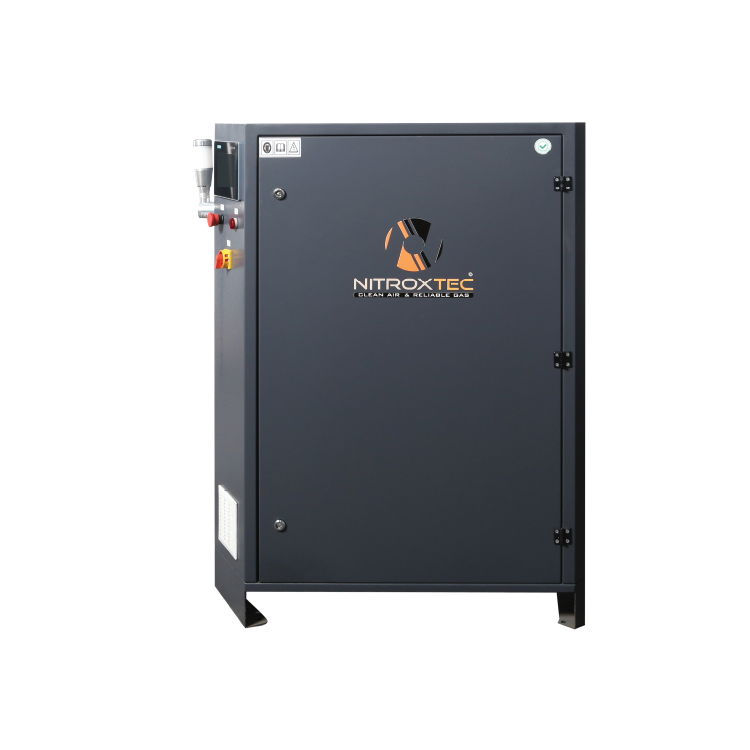

Deoxy Nitrogen Purification Unit

The Nitroxtec Deoxy Nitrogen Purification Unit elevates nitrogen purity from 99.9% to 99.9999% (1 ppm O₂) using a catalytic hydrogen-based purification process. Compact, energy-efficient, and fully automated, it ensures continuous delivery of ultra-high-purity nitrogen for critical applications—compliant with ISO 8573-1:2010 Class 2.4.1 standards.

Category:

Nitroxtec Deoxy Nitrogen Purification Unit

Take Your Nitrogen to the Ultra-Pure Level.

Nitroxtec Deoxy systems are designed to purify nitrogen gas generated by PSA systems, increasing purity from 99.9% up to 99.9999% (6.0 grade). The system employs a catalytic reaction using hydrogen to eliminate residual oxygen. The resulting water vapor is efficiently removed using an integrated chemical dryer, producing dry, oxygen-free, high-purity nitrogen for sensitive industrial applications.

Thanks to its compact design, low energy consumption, and intelligent control system, the Nitroxtec Deoxy Unit is ideal for industries requiring stable, cost-effective, and uninterrupted ultra-high-purity nitrogen.

Key Features

Feature Benefit
99.9999% Nitrogen Purity (1 ppm O₂) Suitable for electronics, semiconductor, and high-end manufacturing
Catalytic Oxygen Removal Converts oxygen into water using palladium-based catalyst
Integrated Chemical Dryer Removes moisture from the purification process
Compact & Modular Design Space-saving and easy to install alongside existing PSA systems
Fully Automatic Control Smart logic minimizes H₂ usage and optimizes performance
Easy Integration Seamless upgrade for existing Nitroxtec or third-party nitrogen units
ISO 8573-1:2010 Class 2.4.1 Compliant Controls particles, oil, and moisture in output stream
Continuous Operation Delivers consistent, ultra-pure nitrogen with minimal maintenance

Working Principle

Nitrogen gas exiting a PSA generator at ~99.9% purity enters the Deoxy Unit, where it is mixed with a precise amount of hydrogen. The gas stream then passes through a palladium-coated alumina catalyst. In this stage, residual oxygen reacts with hydrogen, forming water vapor (H₂O). The resulting humidity is eliminated by a downstream chemical dryer, ensuring a dry, oxygen-free nitrogen output.

The entire process is monitored and controlled by a fully automated PLC system that regulates hydrogen dosing and drying efficiency—ensuring low operating costs and high reliability.

Why Choose Nitroxtec Deoxy Units?

  • Ultra-High Purity (6.0 grade) – Achieve 1 ppm O₂ for critical nitrogen applications

  • Intelligent Control System – Optimized hydrogen use, minimal manual intervention

  • Retrofit Ready – Easily connects to existing PSA nitrogen generators

  • Compact & Efficient – Designed for tight spaces and minimal energy use

  • Certified Clean Output – Compliant with ISO 8573.1:2010 Class 2.4.1

Applications

  • Semiconductor & Microelectronics – Prevents oxidation in ultra-clean environments

  • Metal Heat Treatment – Delivers inert atmosphere for high-temperature processes

  • Pharmaceutical Manufacturing – Ensures sterile and oxygen-free conditions

  • Laser Cutting (Stainless Steel) – Prevents discoloration and oxidation on high-end materials

  • Food Packaging (MAP) – Maintains product freshness by eliminating oxygen

Nitroxtec Deoxy: Where Precision Meets Purity.
Deliver 6.0-grade nitrogen with confidence using Nitroxtec’s Deoxy Purification Unit—engineered for industries where every part per million counts.
