Nitroxtec Containerized Nitrogen Production System
Plug & Produce Nitrogen—Anywhere, Anytime.
Nitroxtec’s containerized nitrogen generators are fully integrated systems engineered for rapid deployment in industrial, construction, or off-grid environments. Designed around PSA (Pressure Swing Adsorption) technology, the system extracts nitrogen from ambient air and delivers high-purity gas without relying on external supply sources.

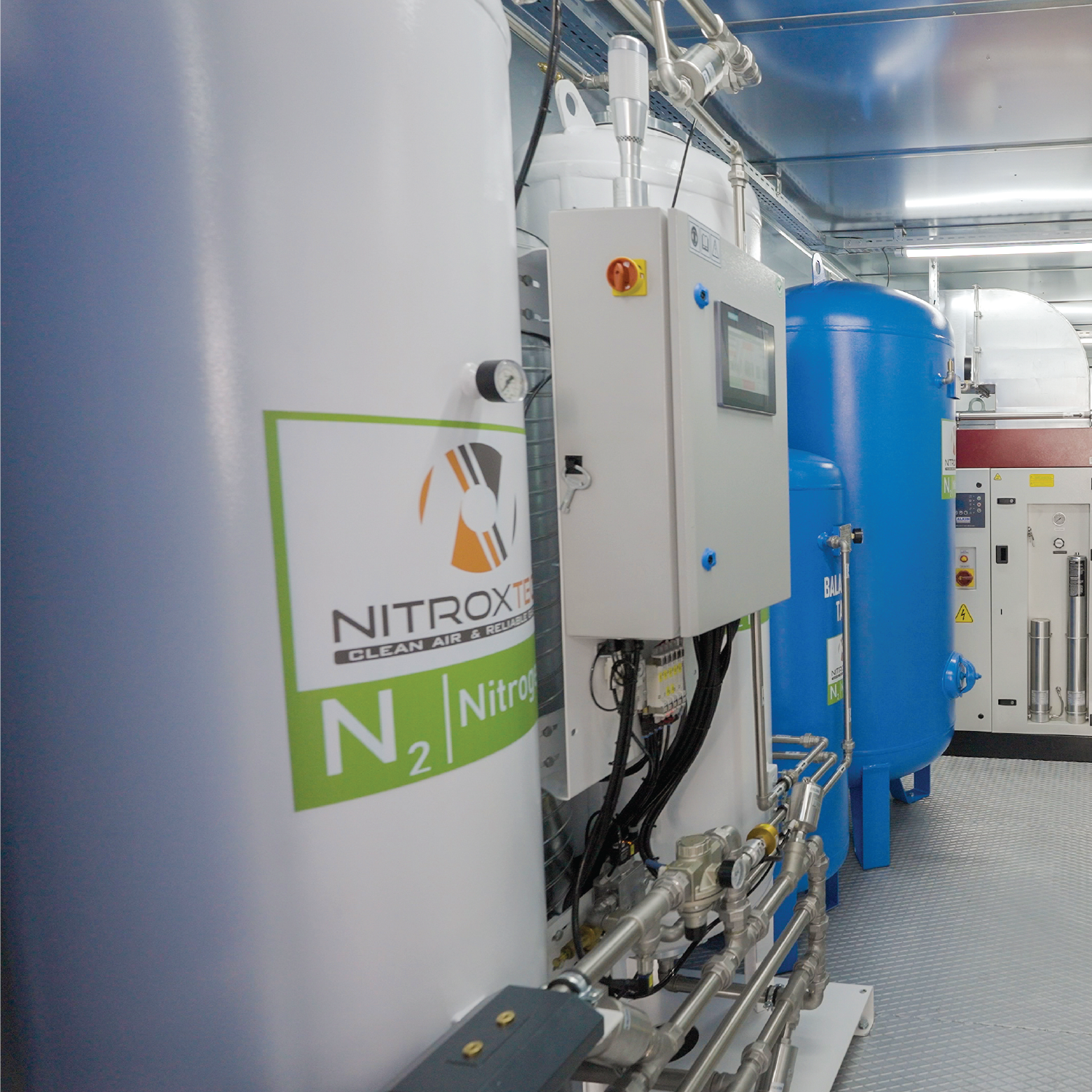

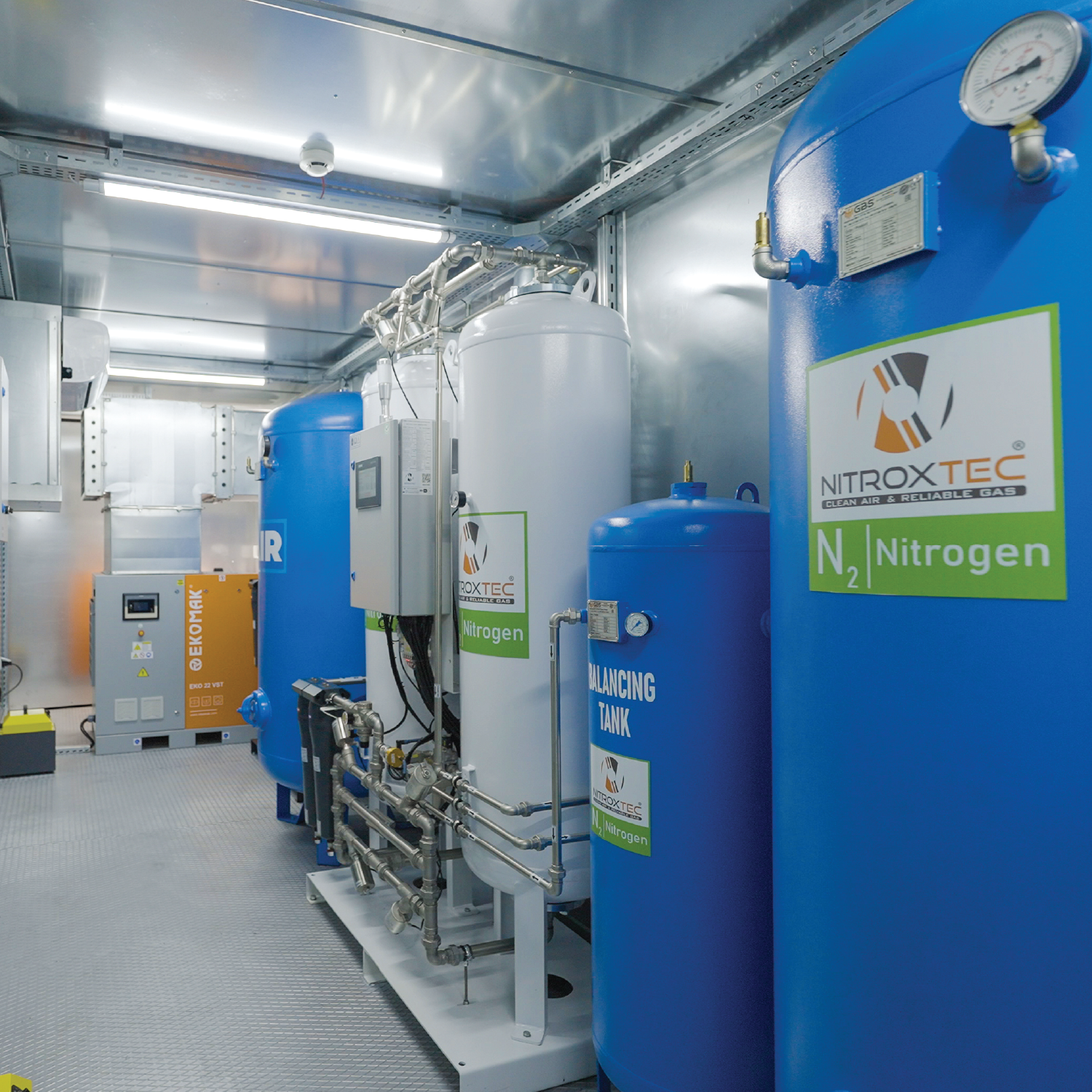

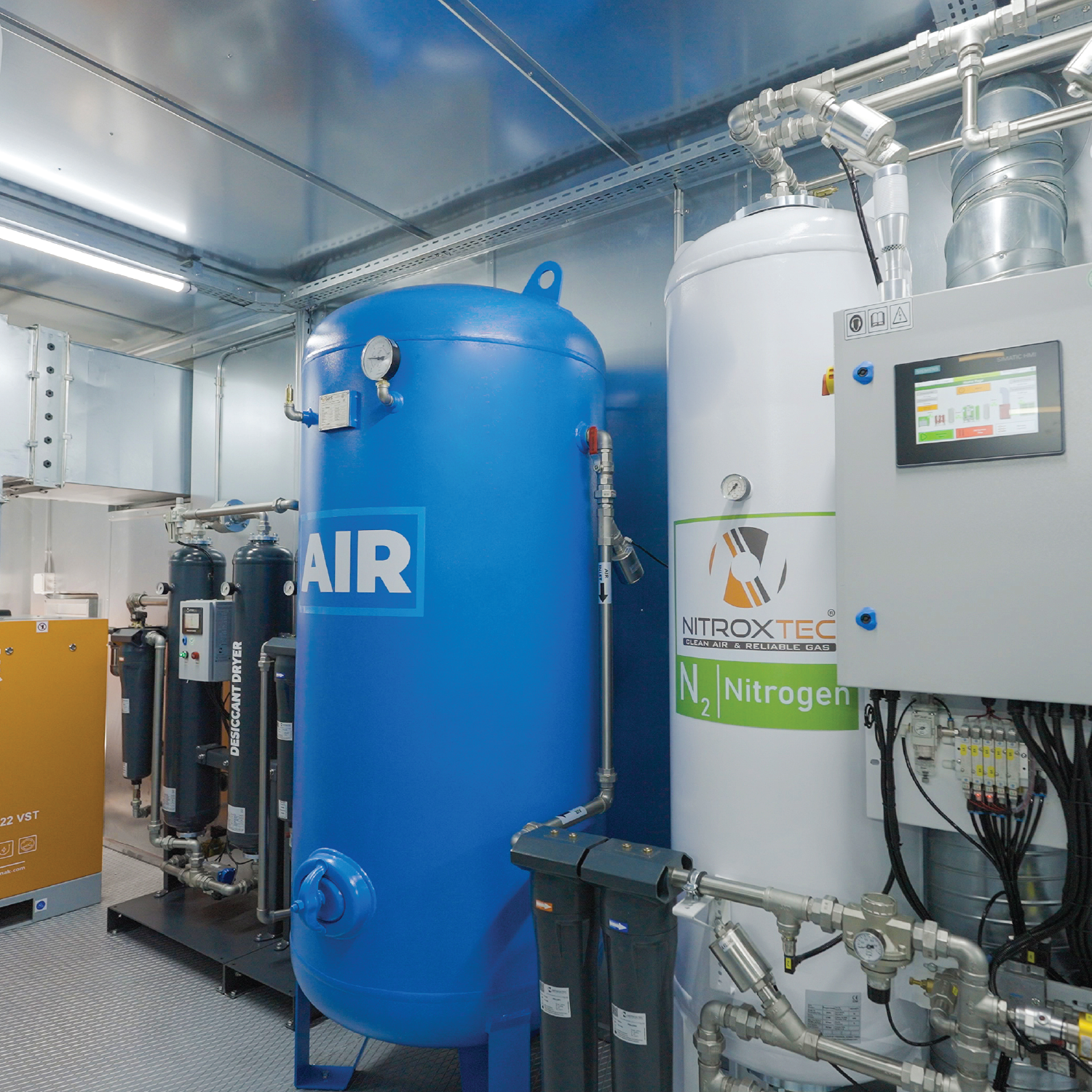

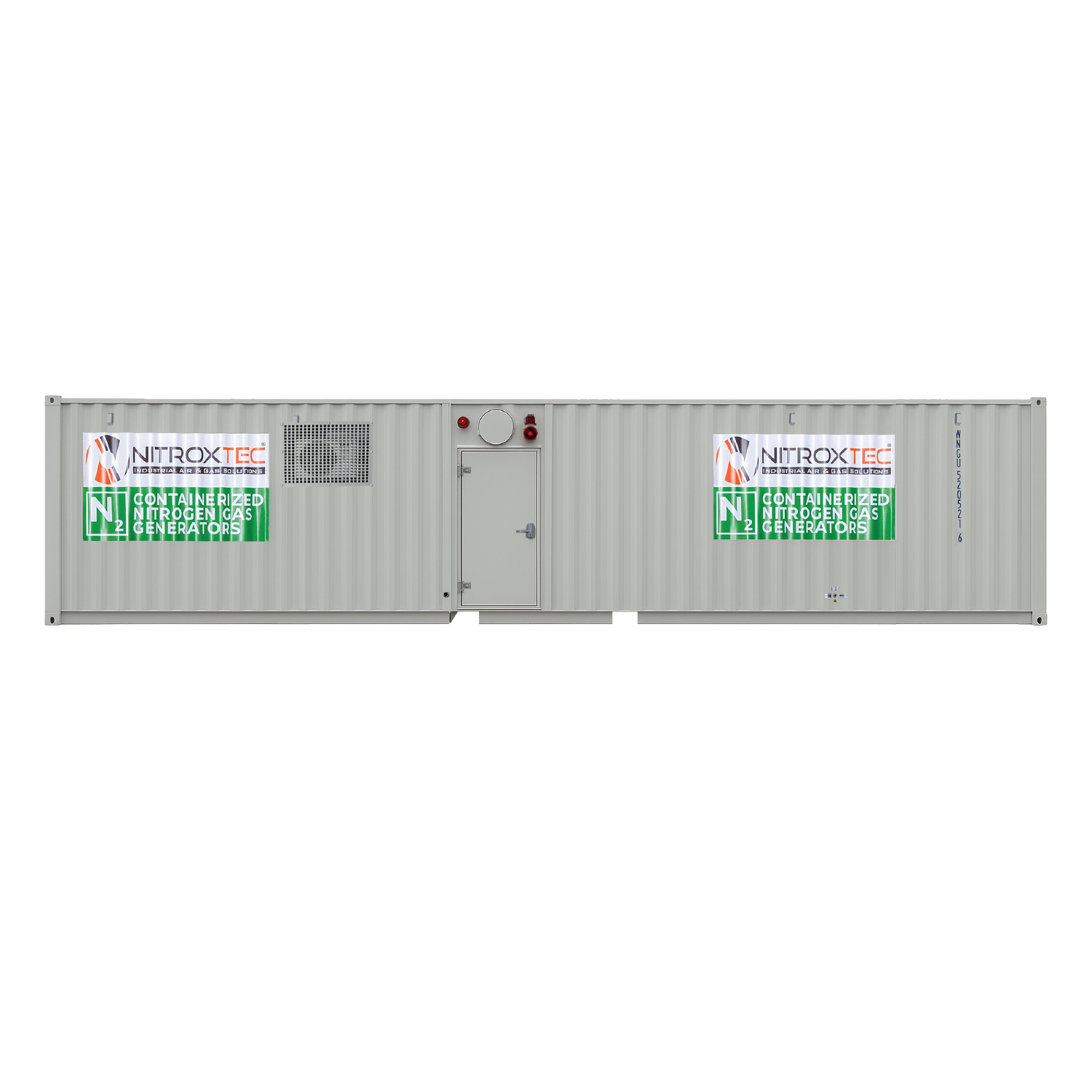

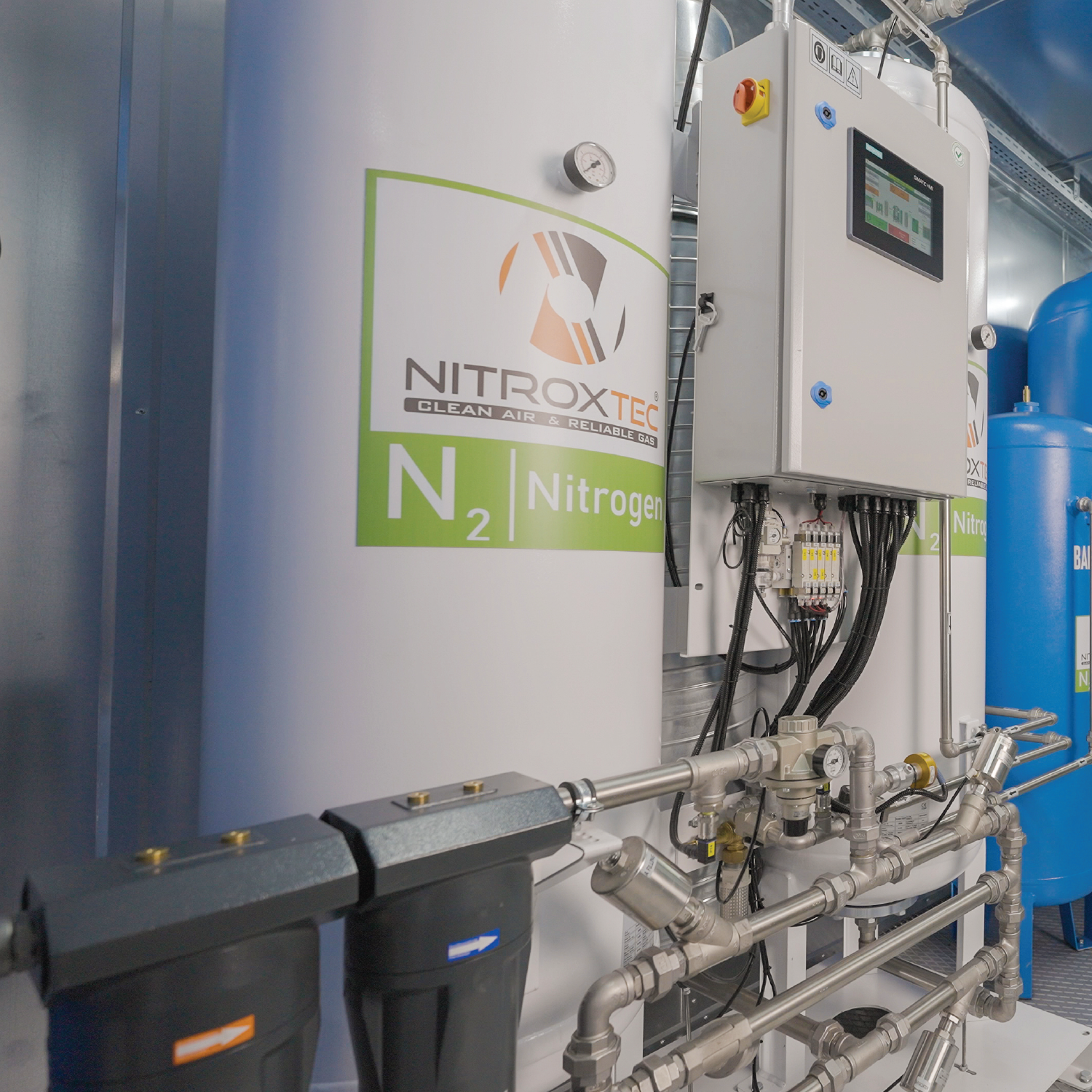

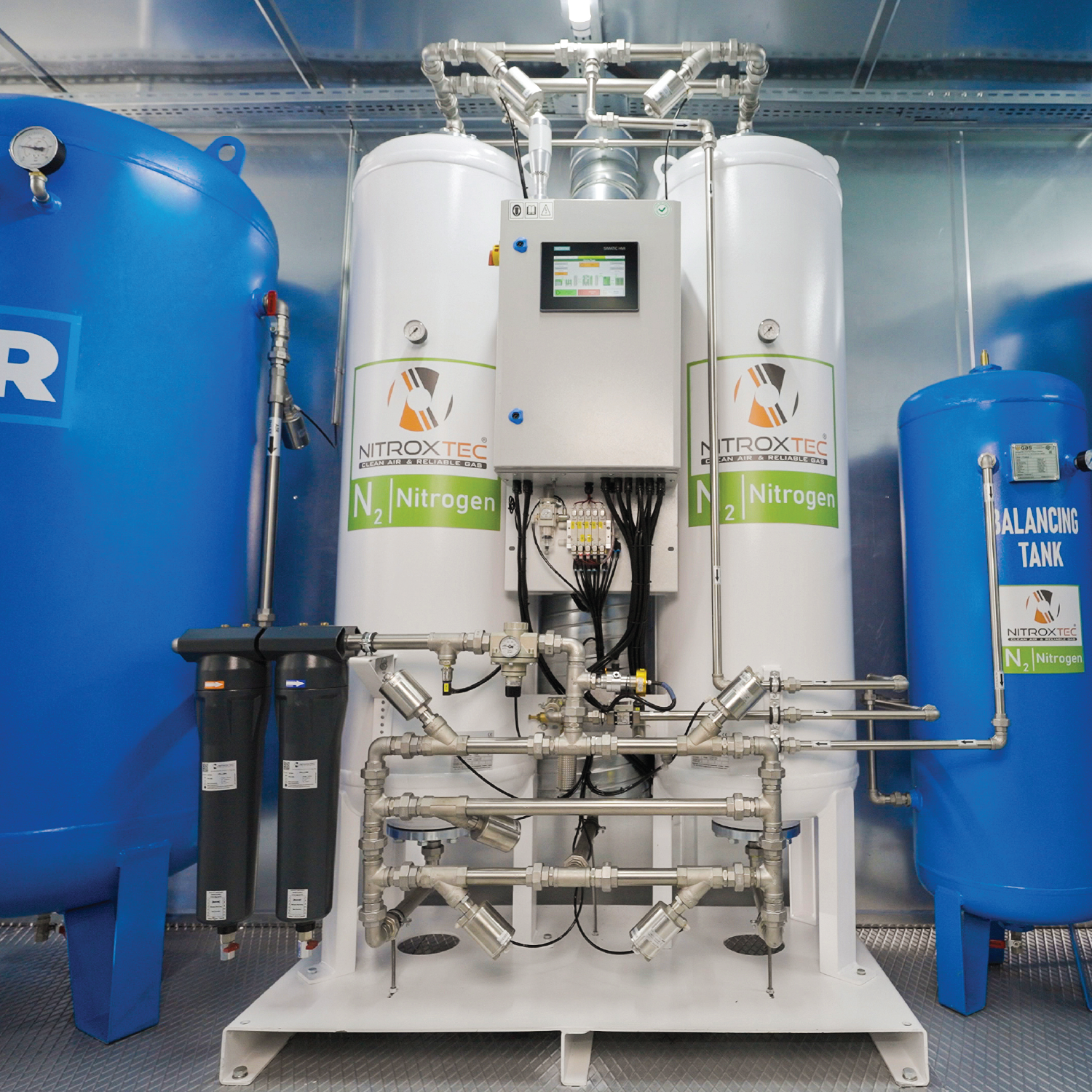

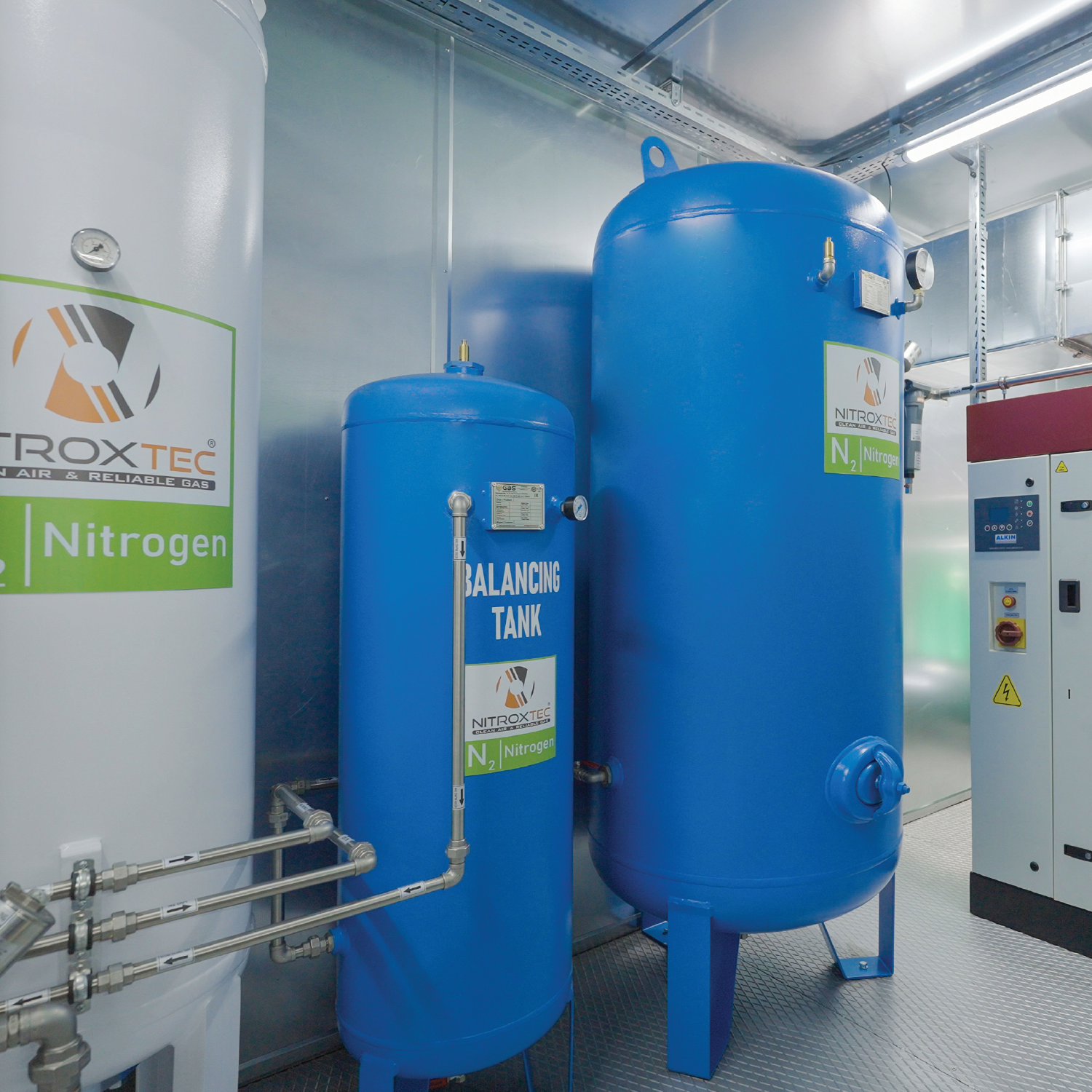

All components—including compressor, air dryer, filtration group, PSA unit, CMS media, and nitrogen buffer tank—are built inside a durable insulated IP65 container. No installation is needed—just electrical connection. This plug-and-play configuration makes it the perfect solution for operations requiring mobility, speed, and reliability.
Key Features
| Feature | Benefit |
|---|---|
| PSA Nitrogen Generation Technology | Purity levels from 95% to 99.9999% (1 ppm O₂) |
| Fully Integrated Container Unit | Compressor, dryer, filters, PSA tower, and nitrogen tank inside one cabin |
| Adjustable Output Pressure (7–10 bar) | Customizable based on process or application needs |
| Touchscreen HMI & Auto Control System | Simple interface with full system automation |
| Modbus TCP/IP Communication | Seamless integration with SCADA & industrial networks |
| Remote Access Option (HUBBOX Ready) | Monitor and manage production from any location |
| Carbon Molecular Sieve (CMS) Technology | Long service life with consistent purity levels |
| IP65-Rated Outdoor Container | Weather-resistant, insulated, and durable enclosure |
| Optional Heating / Cooling System | For operation in extreme environments |
| ISO 8573-1:2010 Class 2.4.1 Air Standard | Ensures top-tier filtration and generator protection |
Technical Specifications
| Parameter | Value |
|---|---|
| Nitrogen Purity | 95% to 99.9999% (1 ppm O₂) |
| Capacity Range | Customizable (based on demand) |
| Outlet Pressure | Adjustable between 7 – 10 bar |
| Air Quality Compliance | ISO 8573-1:2010 Class 2.4.1 |
| Enclosure Protection | IP65 (insulated container) |
| Control Panel | Full automation with touch screen HMI |
| Remote Monitoring (Optional) | HUBBOX with encrypted 2FA security |
| Power Supply | Configurable per client needs |
| Climate Control (Optional) | Integrated heating/cooling unit |
Why Choose Nitroxtec Containerized Nitrogen Systems?
-
Fast Deployment & Mobility – Ready to run within hours of delivery
-
No External Nitrogen Supply Needed – Full independence from bottled gas
-
Reliable & Safe – Automated control with integrated alarms and monitoring
-
Operational Efficiency – Minimal energy consumption, low maintenance
-
Flexible Capacity – Designed to meet short-term or long-term demand
Applications
-
Construction & Remote Industry Zones
Reliable nitrogen source without external supply chain dependence -
Food Packaging & Processing
High-purity nitrogen for modified atmosphere packaging -
Laser Cutting & Metal Fabrication
Stable nitrogen flow for cutting processes up to 20 bar (with booster) -
Electronics & Semiconductor
Inert gas atmosphere for SMT lines and PCB manufacturing -
Oil & Gas / Petrochemical Sites
On-site nitrogen for blanketing, purging, and safety applications -
Gas Cylinder Filling Stations
Mobile filling unit for industrial-grade nitrogen distribution
High-Purity Nitrogen. Fully Mobile. Instantly Operational.
Nitroxtec Containerized Nitrogen Production Systems are built for performance, portability, and precision—empowering industries to produce their own nitrogen whenever and wherever they need it.
