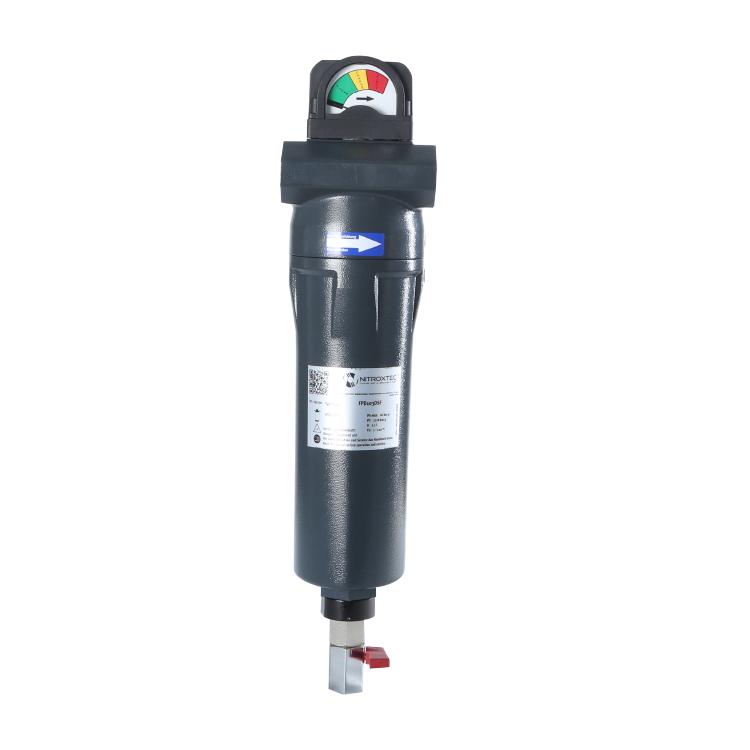

Nitroxtec Compressed Air Filters
Clean Air. Reliable Filtration. Extended Equipment Life.
Nitroxtec Compressed Air Filters are designed to protect your pneumatic systems and ensure high-quality air in every stage of your process. Whether your operation requires general-purpose filtration or ultra-fine oil and dust removal, Nitroxtec offers a full range of filters engineered to meet the strictest standards.
Available in multiple filtration grades—from coarse particle removal to ultra-fine coalescing and activated carbon stages—Nitroxtec filters ensure compliance with ISO 8573-1:2010 standards for solid particles, water, and oil content. With robust construction, low pressure drop, and long-lasting filter elements, these filters optimize system performance and reduce total cost of ownership.
Key Features
| Feature | Benefit |
|---|---|
| Filtration Ratings from 25 μm to 0.01 μm | Suitable for pre-, fine-, and ultra-fine filtration stages |
| ISO 8573-1:2010 Class Compliance | Air quality meets industry standards for oil, water, and particles |
| High-Efficiency Coalescing & Particulate Elements | Protects sensitive equipment and downstream processes |
| Low Pressure Drop | Reduces energy consumption and increases system efficiency |
| Long-Life Filter Cartridges | Reduced maintenance frequency and lower operating costs |
| Durable Housing | Corrosion-resistant aluminum or stainless steel construction |
| Automatic or Manual Drain Valves | Reliable removal of accumulated liquids and oil |
| Modular Design | Easy to integrate into existing systems or combine with other filters |
Filtration Grades
| Grade | Type | Typical Application | Residual Oil Content |
|---|---|---|---|
| G | General purpose particle filter | Bulk water/dust removal | — |
| F | Fine coalescing filter | Oil aerosols, water vapor | ≤ 0.1 mg/m³ |
| S | Super fine coalescing filter | High-purity compressed air | ≤ 0.01 mg/m³ |
| A | Activated carbon filter | Odor & oil vapor removal | ≤ 0.003 mg/m³ |
Working Principle
Contaminated compressed air enters the filter housing and passes through a specially engineered filter element. Depending on the grade, solid particles are captured, water and oil aerosols coalesce and are drained, and odors or oil vapors are adsorbed. The result: clean, dry, and oil-free air ready for sensitive applications.
Why Choose Nitroxtec Compressed Air Filters?
-
Comprehensive Filtration Options – Covers all ISO 8573 air classes for solids, water, and oil
-
Protects Equipment & Product Quality – Reduces corrosion, contamination, and downtime
-
Modular and Scalable – Easily integrates into new or existing systems
-
Cost-Efficient Maintenance – Long service intervals and easy element replacement
-
Reliable & Durable – Built for tough industrial environments
Clean Air Starts with Confidence.
Nitroxtec Compressed Air Filters deliver unmatched filtration performance and air purity—so your operations stay protected, efficient, and fully compliant with industry standards.
